Learning From Demonstration Using DMPs

February - May 2018

Github Documentation
Learning From Demonstration Using DMPs

Objective

To develop a Learning from Demonstration framework using Dynamic Movement Primitives for the 5-DOF Kuka YouBot manipulator arm in V-REP simulation environment

Research Aspects

  • Giving demonstrations to the manipulator in task space and conducting learning experiments in joint-space
  • Understanding scope of temporal and spatial scaling and how it reflects in the task space

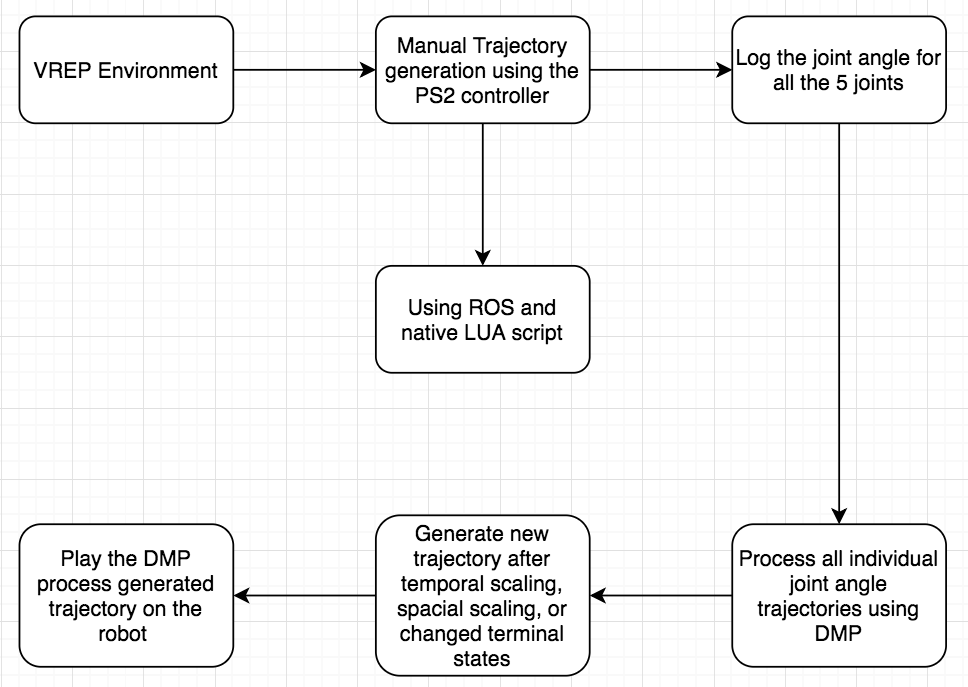

Data FLow-Chart
Data Flow-Chart

Methodology

The complete environment was setup in V-REP and Python using its Remote-API interface with Python. The demonstrations could be fed to the simulation model in task-space using a gaming controller that uses ROS based Inverse Kinematics service. The training was done in joint space considering the variations at each joint level over time. Several combinations for the number of Gaussian basis functions were tested and nfs = 150 gave most reliable results

Dynamic Movement Primitive Training pipeline
Dynamic Movement Primitive Training pipeline

Results

  • The setup was successfully trained successfully for a given demonstration
  • Testing on changed terminal states and temporal scaling requirements worked fairly well. Spatial scaling was not tried to avoid reaching joint limits for the robot

Initially learned DMP trajectory
Initially learned DMP trajectory

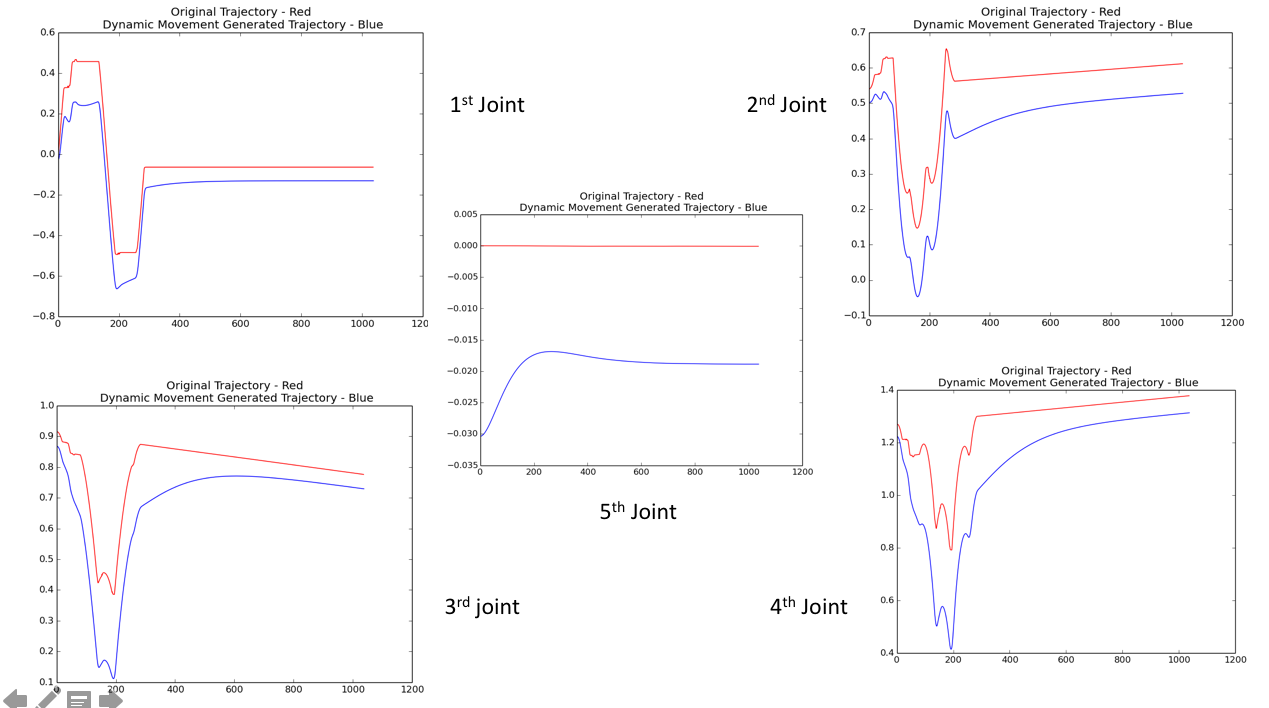

Testing for changed start and end positions for all the joints
Testing for changed start and end positions for all the joints

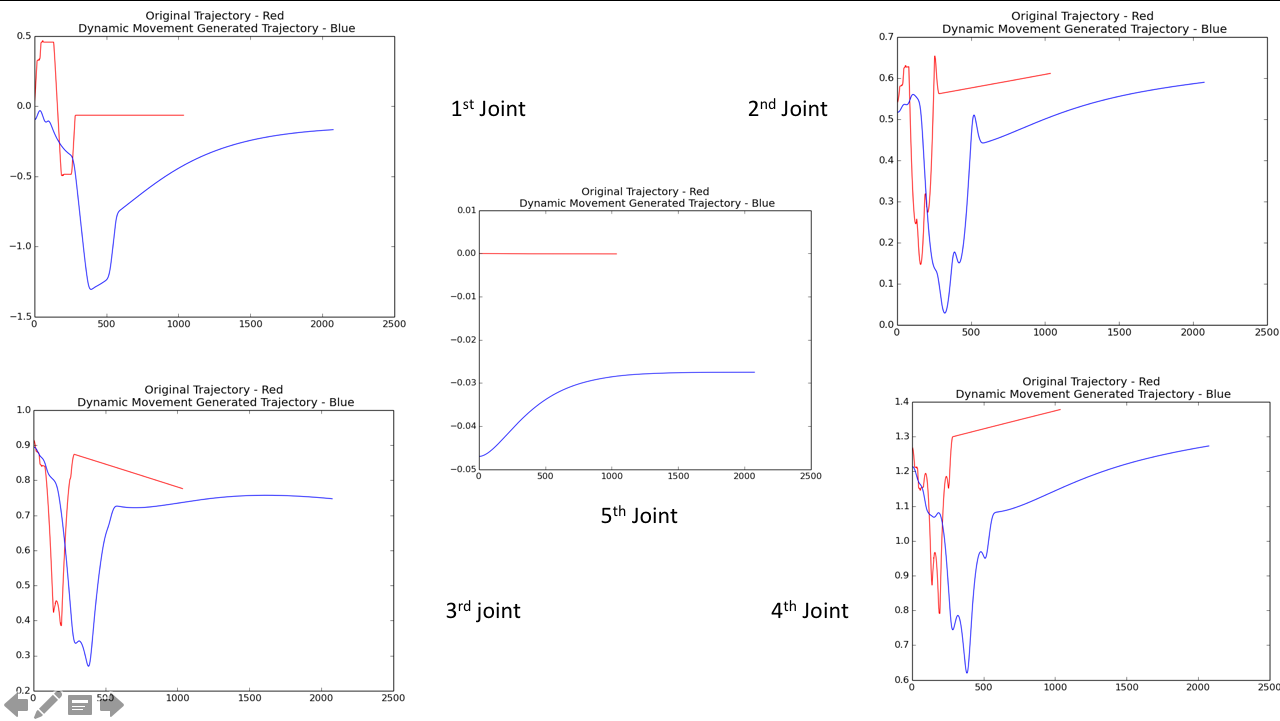

Testing for changed terminal states and temporal scaling (doubled time-span)
Testing for changed terminal states and temporal scaling (doubled time-span)

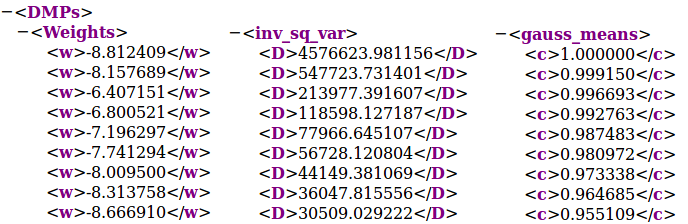

Snippet of the various parameters generated in the learned trajectory
Snippet of the various parameters generated in the learned trajectory

Changed Terminal States

Temporal Scaling - Twice Slow

DMP - Changed Terminal states as well as Temporal Scaling
